● Additional Boards Manager URLs https://github.com/earlephilhower/arduino-pico/releases/download/global/package_rp2040_index.json

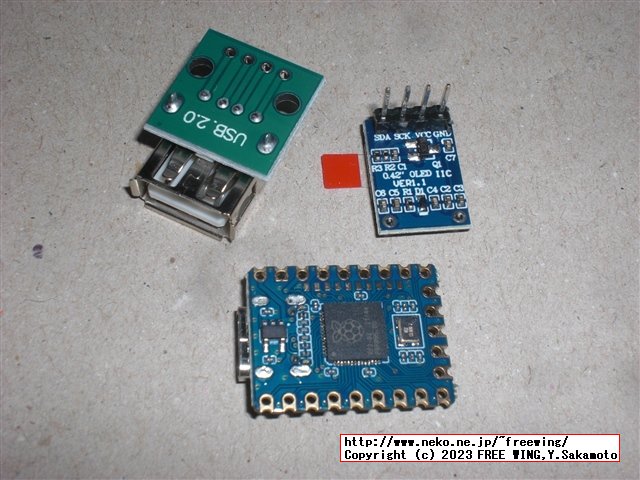

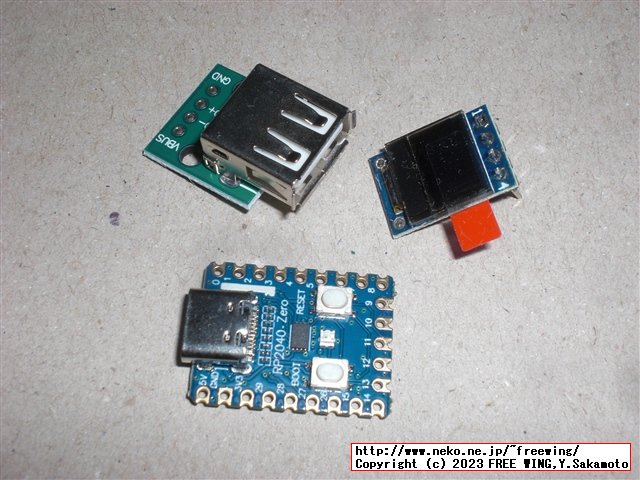

![]() Waveshare RP2040-Zero 高性能ピコライクMCUボード Raspberry PiマイクロコントローラーRP2040 カステレーションモジュールでキャリアボードに直接はんだ付け可能 - 2個 ASIN: B0B2Z3YWB9 |
![]() KKHMF 20個 USB タイプA メスソケット ブレイクアウトボード 4Pアダプタコネクタ 2.54mm ソルダープリント DIY 基板 ブレッドボード 電源 ASIN: B099PCM2D2 |
![]() ARCELI 20値0805SMD抵抗器アソートメントキットSMD抵抗器各20合計400 ASIN: B07RTH6JHX ※ 22Ωの抵抗が必要だから |
![]() GAOHOU 5個 0.42インチ 4ピン OLEDディスプレイ SSD1306 LCD IICインタフェースモジュール 白表示 ASIN: B0CDC6VSKC ※ I2C OLED SSD1306 |
//------------------------------------------------------------------------------ // this section is based on 72x40 Micro OLED display (by r7) /** Initialization commands for a 72x40 SSD1306 0.42 inch oled display. */ static const uint8_t MEM_TYPE MicroOLED72x40init[] = { // Init sequence for 72x40 Micro OLED module // Model:TOX042TSWPG01 0.42" OLED Display Module (72*40) // 4.4 Actual Application Example <Power up Sequence> /* // SSD1315 SSD1306_DISPLAYOFF, SSD1306_SETDISPLAYCLOCKDIV, 0xF0, // the suggested ratio 0x80 SSD1306_SETMULTIPLEX, 0x27, // (DISPLAYHEIGHT - 1) SSD1306_SETDISPLAYOFFSET, 0x0, // no offset SSD1306_SETSTARTLINE, // line #0 SSD1306_CHARGEPUMP, 0x95, // internal vcc SSD1306_SEGREMAP | 0x1, // column 127 mapped to SEG0 SSD1306_COMSCANDEC, // column scan direction reversed SSD1306_SETCOMPINS, 0x12, // 0x12 if height > 32 else 0x02 SSD1306_SETCONTRAST, 0xAF, // contrast level 127 SSD1306_SETPRECHARGE, 0x1F, // pre-charge period (1, 15) SSD1306_SETVCOMDETECT, 0x20, // vcomh regulator level SSD1306_NORMALDISPLAY, SSD1306_DISPLAYALLON_RESUME, SSD1306_DISPLAYON */ // SSD1306 SSD1306_DISPLAYOFF, SSD1306_SETDISPLAYCLOCKDIV, 0x80, // the suggested ratio 0x80 SSD1306_SETMULTIPLEX, 0x27, // (DISPLAYHEIGHT - 1) SSD1306_SETDISPLAYOFFSET, 0x0, // no offset SH1106_SET_PUMP_MODE, 0x030, // Internal IREF Setting for the 0.42 OLED, see also issue https://github.com/olikraus/u8g2/issues/1047 SSD1306_CHARGEPUMP, 0x14, // internal vcc SSD1306_SETSTARTLINE, // line #0 SSD1306_NORMALDISPLAY, SSD1306_DISPLAYALLON_RESUME, SSD1306_MEMORYMODE, 0x00, SSD1306_SEGREMAP | 0x1, // column 127 mapped to SEG0 SSD1306_COMSCANDEC, // column scan direction reversed SSD1306_SETCOMPINS, 0x12, // 0x12 if height > 32 else 0x02 SSD1306_SETCONTRAST, 0x5F, // contrast level 127 SSD1306_SETPRECHARGE, 0x22, // pre-charge period (1, 15) SSD1306_SETVCOMDETECT, 0x20, // vcomh regulator level SSD1306_DISPLAYON }; /** Initialize a 72x40 Micro OLED display. */ static const DevType MEM_TYPE MicroOLED72x40 = { MicroOLED72x40init, sizeof(MicroOLED72x40init), 72, 40, 28 // Use middle 72 columns. (128 - 72) / 2 }; // clang-format on #endif // SSD1306init_h※ 72x40の場合、黄色行の SH1106_SET_PUMP_MODE, 0x030, が必要です。

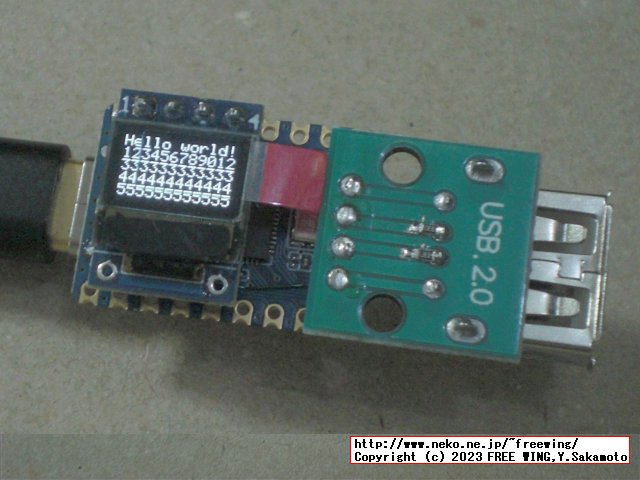

// Waveshare RP2040-Zero #include "SSD1306Ascii.h" #include "SSD1306AsciiWire.h" // 0X3C+SA0 - 0x3C or 0x3D #define I2C_ADDRESS 0x3C // Define proper RST_PIN if required. #define RST_PIN -1 SSD1306AsciiWire oled; void setup() { // put your setup code here, to run once: // Select IO pins to use. Call before ::begin() Wire.setSDA(28); Wire.setSCL(29); Wire.begin(); // SCL tcycle Clock Cycle Time = 2.5us = 400kHz Wire.setClock(400000L); // 400kHz // SSD1306 72*40 0.42' MicroOLED72x40 #if RST_PIN >= 0 oled.begin(&MicroOLED72x40, I2C_ADDRESS, RST_PIN); #else // RST_PIN >= 0 oled.begin(&MicroOLED72x40, I2C_ADDRESS); #endif // RST_PIN >= 0 // Call oled.setI2cClock(frequency) to change from the default frequency. oled.setFont(System5x7); oled.clear(); oled.println("Hello world!"); oled.println("123456789012"); oled.println("333333333333"); oled.println("444444444444"); oled.println("555555555555"); oled.setContrast(32); } void loop() { // put your main code here, to run repeatedly: oled.clear(); delay(500); oled.println("Hello world!"); oled.println("123456789012"); oled.println("333333333333"); oled.println("444444444444"); oled.println("555555555555"); delay(500); }
