・2021/11/07
QMK firmwareで Analog Stick機能で PSP2000用アナログ ジョイスティックを試してみる
(QMK firmware test Analog Joystick function with PSP2000 Analog Stick)
Tags: [電子工作], [QMK]
● QMK firmwareの関連記事
・2021/08/23
QMK firmwareの開発環境を ラズパイや Windows WSLにセットアップする方法
ラズパイや Windows WSL環境でカスタマイズ キーボードのファームウェア QMK firmwareの開発環境を構築
・2022/01/09
BUFFALOの USB テンキーを Pro Microと QMKを使って VIAカスタマイズ キーボードに改造する方法
BUFFALO USB 10-Key keyboard BSTK100 modification by Pro Micro and QMK firmware VIA
・2021/08/11
社畜のキーボード「新入社員の同期」を購入してみた!! VIA、QMK、Remapでのカスタマイズに対応
キー内容が Remap等でカスタマイズ可能な社畜のキーボード「新入社員の同期」を 3500円で購入
● QMK firmwareの Joystick機能を使って PSP-2000で Gameコントローラを実装してみるテスト
QMK - Joystick

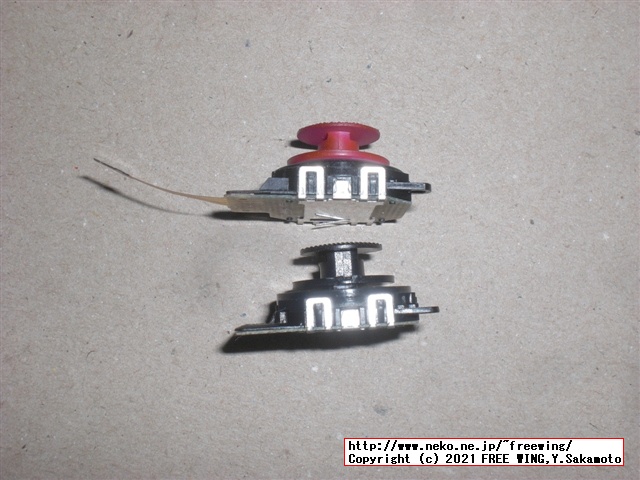

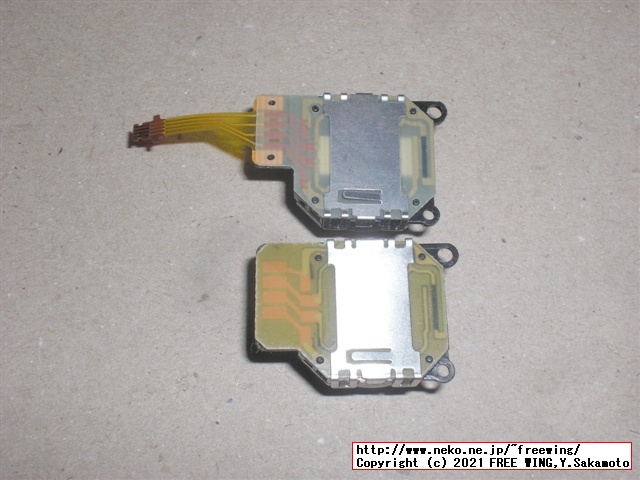

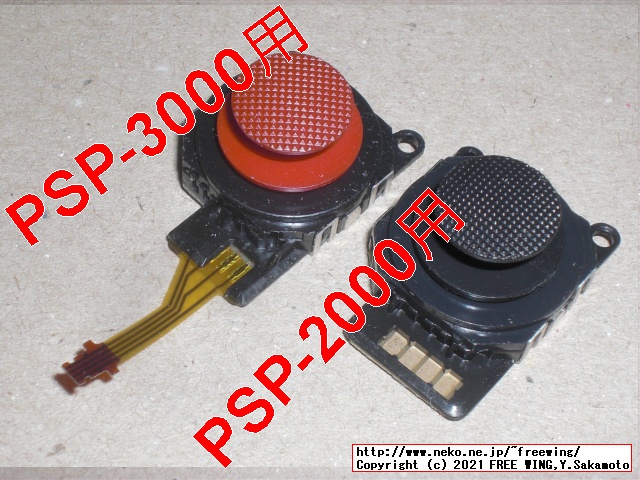

PSP-1000、PSP-2000、PSP-3000とで接続部分が異なります。

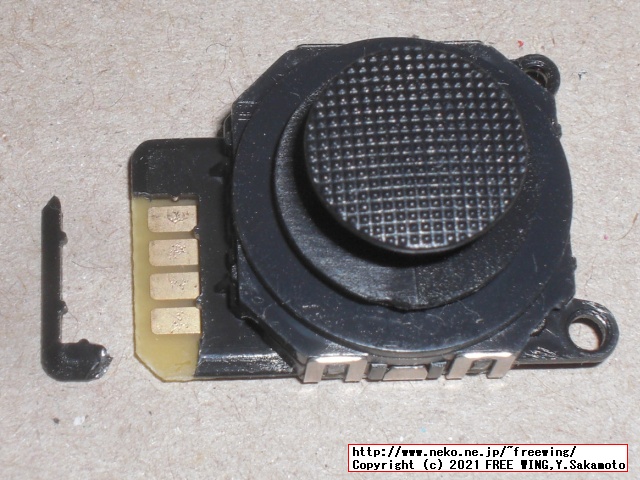

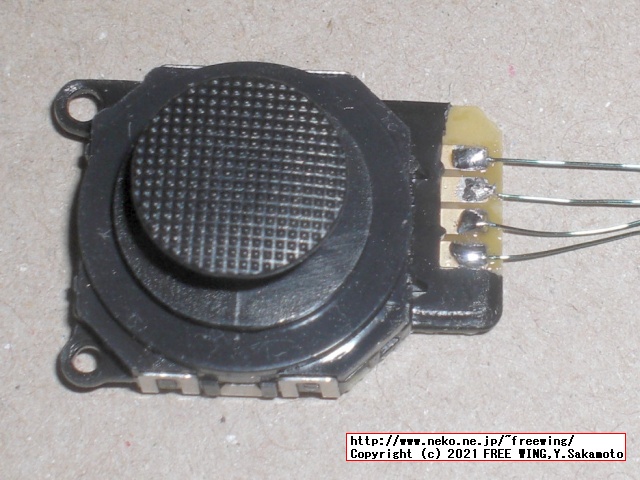

PSP-2000の物が一番簡単だと思います。
● Switchのジョイコンを使う場合は MicroUSBの変換基板を接続用として転用します
Switchのジョイコンを使う場合は MicroUSBの変換基板の USBコネクタ部分を 0.5mmピッチの FPCコネクタに載せ換えて変換基板として代用します。
※ 0.5mmピッチのフレキシブルケーブルに直接の半田付けは不可能です

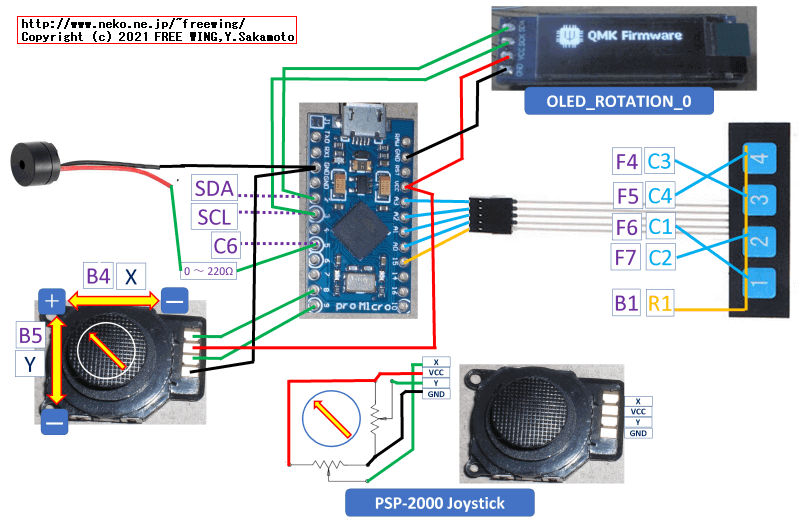

● QMK firmwareの Joystick機能を使って PSP-2000で Gameコントローラを実装してみるテストの回路図
・QMK firmwareの Joystick機能を使って PSP-2000で Gameコントローラを実装してみるテストの回路図
● QMK firmwareの Joystick機能を使って PSP-2000で Gameコントローラを実装してみるテストのソースリスト
handwired/freewing/test_qmk
rules.mk
JOYSTICK_ENABLE = yes # Joystick Game controller HID Interface
JOYSTICK_DRIVER = analog # Stick mode analog or digital
SRC += analog.c
config.h
#ifdef JOYSTICK_ENABLE
#define JOYSTICK_BUTTON_COUNT 0
#define JOYSTICK_AXES_COUNT 2
#define JOYSTICK_AXES_RESOLUTION 10
#endif
●その1
test_qmk.c
#ifdef JOYSTICK_ENABLE
#include "joystick.h"
#include "analog.h"
/* joystick config */
joystick_config_t joystick_axes[JOYSTICK_AXES_COUNT] = {
[0] = JOYSTICK_AXIS_IN(B4, 1023, 512, 0),
[1] = JOYSTICK_AXIS_IN(B5, 0, 512, 1023)
};
/* joystick button code (thumbstick pressed) */
void keyboard_pre_init_kb(void) {
// setPinInputHigh(F6);
}
#endif
●その2
その2の方がスティックの変位が自然。
#ifdef JOYSTICK_ENABLE
#include "joystick.h"
#include "analog.h"
void joystick_task(){
joystick_status.axes[0] = analogReadPin(B4)/4 - 128;
joystick_status.axes[1] = analogReadPin(B5)/4 - 128;
joystick_status.status |= JS_UPDATED;
send_joystick_packet(&joystick_status);
}
#endif

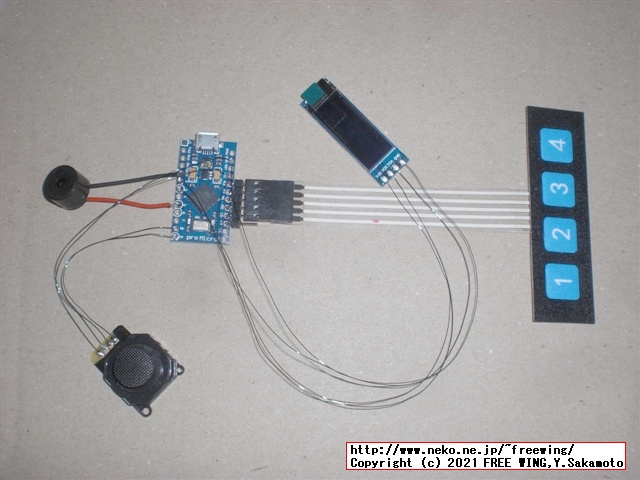

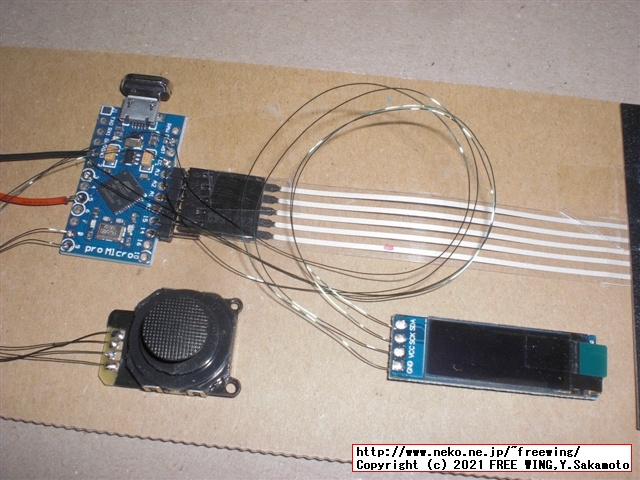

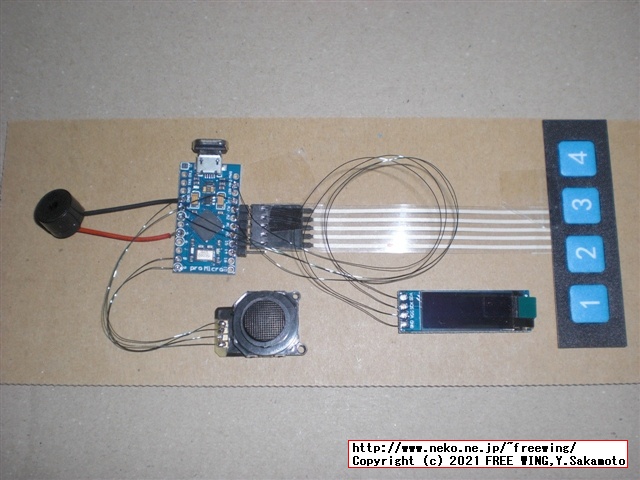

・QMK firmwareの Joystick機能を使って PSP-2000で Gameコントローラを実装してみるテスト
●その他の QMK キーボードの試作品
Quantum Mechanical Keyboard
・Piezo Buzzer = Passive
他励振タイプ(パッシブ、受身)の圧電ブザーの Audio機能の確認
・Analog Joystick = PSP-2000 compatible
PSP-2000互換のアナログ ジョイスティックによるマウス操作、ゲームコントローラ操作
・OLED Display = I2C SSD1306 128x32
I2C接続の有機 LEDディスプレイ SSD1306 128x32の表示確認
Hand Wired QMK Firmware test with Pro Micro and Buzzer Analog Joystick OLED SSD1306
● QMK firmwareの Joystick機能を使って PSP-2000でマウスカーソルを動かすテストのソースリスト
handwired/freewing/test_qmk
qmk_firmware/keyboards/40percentclub/nano/keymaps/drashna/keymap.c
を参考にした(マルパク)。
rules.mk
# JOYSTICK_ENABLE = yes # Joystick Game controller HID Interface
# JOYSTICK_DRIVER = analog # Stick mode analog or digital
SRC += analog.c
POINTING_DEVICE_ENABLE = yes # Generic Pointer
test_qmk.c
#include "analog.h"
#include "pointing_device.h"
// Set Parameters
uint16_t minAxisValue = 0;
uint16_t maxAxisValue = 1023;
uint8_t maxCursorSpeed = 2;
uint8_t precisionSpeed = 1;
uint8_t speedRegulator = 20; // Lower Values Create Faster Movement
int8_t xPolarity = 1;
int8_t yPolarity = 1;
uint8_t cursorTimeout = 10;
int16_t xOrigin, yOrigin;
uint16_t lastCursor = 0;
int16_t axisCoordinate(uint8_t pin, uint16_t origin) {
int8_t direction;
int16_t distanceFromOrigin;
int16_t range;
int16_t position = analogReadPin(pin);
if (origin == position) {
return 0;
} else if (origin > position) {
distanceFromOrigin = origin - position;
range = origin - minAxisValue;
direction = -1;
} else {
distanceFromOrigin = position - origin;
range = maxAxisValue - origin;
direction = 1;
}
float percent = (float)distanceFromOrigin / range;
int16_t coordinate = (int16_t)(percent * 100);
if (coordinate < 0) {
return 0;
} else if (coordinate > 100) {
return 100 * direction;
} else {
return coordinate * direction;
}
}
int8_t axisToMouseComponent(uint8_t pin, int16_t origin, uint8_t maxSpeed, int8_t polarity) {
int coordinate = axisCoordinate(pin, origin);
if (coordinate != 0) {
float percent = (float)coordinate / 100;
if (get_mods() & MOD_BIT(KC_LSFT)) {
return percent * precisionSpeed * polarity * (abs(coordinate) / speedRegulator);
} else {
return percent * maxCursorSpeed * polarity * (abs(coordinate) / speedRegulator);
}
} else {
return 0;
}
}
void pointing_device_init(void) {
// init pin? Is needed?
// setPinInputHigh(E6);
// Account for drift
xOrigin = analogReadPin(B4);
yOrigin = analogReadPin(B5);
}
void pointing_device_task(void) {
report_mouse_t report = pointing_device_get_report();
// todo read as one vector
if (timer_elapsed(lastCursor) > cursorTimeout) {
lastCursor = timer_read();
report.x = axisToMouseComponent(B4, xOrigin, maxCursorSpeed, xPolarity);
report.y = axisToMouseComponent(B5, yOrigin, maxCursorSpeed, yPolarity);
}
//
// if (!readPin(E6)) {
// report.buttons |= MOUSE_BTN1;
// } else {
// report.buttons &= ~MOUSE_BTN1;
// }
pointing_device_set_report(report);
pointing_device_send();
}
