【インストール版】Raspberry Piで DeepDreamを動かしてキモイ絵をモリモリ量産 Caffe Deep Learning

【ビルド版】Raspberry Piで DeepDreamを動かしてキモイ絵をモリモリ量産 Caffe Deep Learning Framework

pi@raspberrypi:~/pytorch $ uname -a
Linux raspberrypi 4.14.50-v7+ #1122 SMP Tue Jun 19 12:26:26 BST 2018 armv7l GNU/Linux

# お決まりの sudo apt-get updateで最新状態に更新する
sudo apt-get update

# apt-cache search caffeで caffeの名前のパッケージを検索する
apt-cache search caffe

# apt-get installで caffeの CPU版をインストールする
sudo apt-get -y install caffe-cpu

pi@raspberrypi:~ $ apt-cache search caffe
caffe-cpu - Fast, open framework for Deep Learning (Meta)
caffe-doc - Caffe's doxygen docs and examples
caffe-tools-cpu - Tools for fast, open framework for Deep Learning (CPU_ONLY)
caffeine - prevent the desktop becoming idle in full-screen mode
git-cola - highly caffeinated git GUI
gnome-shell-extension-caffeine - GNOME Shell extension to keep your computer awake
libcaffe-cpu-dev - development files for Caffe (CPU_ONLY)
libcaffe-cpu1 - library of Caffe, deep learning framework (CPU_ONLY)
python3-caffe-cpu - Python3 interface of Caffe (CPU_ONLY)
ttf-aenigma - 465 free TrueType fonts by Brian Kent

pi@raspberrypi:~ $ sudo apt-get -y install caffe-cpu
Reading package lists... Done
Building dependency tree
Reading state information... Done
The following additional packages will be installed:
  caffe-tools-cpu cython3 fonts-lyx ipython3 libaec0 libblosc1
  libboost-python1.62.0 libcaffe-cpu1 libgflags2v5 libgoogle-glog0v5
  libhdf5-100 libjs-jquery-ui libleveldb1v5 liblmdb0 libprotobuf10 libsz2
  libzstd1 python-matplotlib-data python-pexpect python-ptyprocess
  python-tables-data python3-bs4 python3-caffe-cpu python3-cycler
  python3-dateutil python3-decorator python3-gflags python3-h5py
  python3-html5lib python3-ipython python3-ipython-genutils python3-leveldb
  python3-lxml python3-matplotlib python3-networkx python3-nose
  python3-numexpr python3-pandas python3-pandas-lib python3-pexpect
  python3-pickleshare python3-prompt-toolkit python3-protobuf
  python3-ptyprocess python3-pygments python3-pyparsing python3-scipy
  python3-simplegeneric python3-skimage python3-skimage-lib python3-tables
  python3-tables-lib python3-traitlets python3-tz python3-wcwidth
  python3-webencodings python3-yaml ttf-bitstream-vera

# command line interface working
caffe

# python3 interface working
python3 -c 'import caffe; print(caffe.__path__)'

pi@raspberrypi:~ $ caffe --version
caffe version 1.0.0-rc4

pi@raspberrypi:~ $ python3 -c 'import caffe; print(caffe.__path__)'
['/usr/lib/python3/dist-packages/caffe']

pi@raspberrypi:~ $ caffe
caffe: command line brew
usage: caffe <command> <args>

commands:
  train           train or finetune a model
  test            score a model
  device_query    show GPU diagnostic information
  time            benchmark model execution time

  Flags from /build/caffe-V1QGus/caffe-1.0.0~rc4/tools/caffe.cpp:
    -gpu (Optional; run in GPU mode on given device IDs separated by ','.Use
      '-gpu all' to run on all available GPUs. The effective training batch
      size is multiplied by the number of devices.) type: string default: ""
    -iterations (The number of iterations to run.) type: int32 default: 50
    -level (Optional; network level.) type: int32 default: 0
    -model (The model definition protocol buffer text file.) type: string
      default: ""
    -phase (Optional; network phase (TRAIN or TEST). Only used for 'time'.)
      type: string default: ""
    -sighup_effect (Optional; action to take when a SIGHUP signal is received:
      snapshot, stop or none.) type: string default: "snapshot"
    -sigint_effect (Optional; action to take when a SIGINT signal is received:
      snapshot, stop or none.) type: string default: "stop"
    -snapshot (Optional; the snapshot solver state to resume training.)
      type: string default: ""
    -solver (The solver definition protocol buffer text file.) type: string
      default: ""
    -stage (Optional; network stages (not to be confused with phase), separated
      by ','.) type: string default: ""
    -weights (Optional; the pretrained weights to initialize finetuning,
      separated by ','. Cannot be set simultaneously with snapshot.)
      type: string default: ""

cd
git clone https://github.com/kesara/deepdreamer
cd deepdreamer

# 学習データ bvlc_googlenet.caffemodelをダウンロードする
wget http://dl.caffe.berkeleyvision.org/bvlc_googlenet.caffemodel

# deploy.prototxtをダウンロードする
# https://github.com/BVLC/caffe/tree/master/models/bvlc_googlenet
wget https://raw.githubusercontent.com/BVLC/caffe/master/models/bvlc_googlenet/deploy.prototxt

# deploy.prototxtの一番最後に force_backward: trueの行を追加する
# nano deploy.prototxt
# force_backward: true

# コマンドラインでサクッと force_backward: trueの行を追加する
echo "force_backward: true" >> deploy.prototxt

# tailコマンドで最後に追加された事を確認する
tail deploy.prototxt

pi@raspberrypi:~/deepdreamer $ python3 deepdreamer.py sample.jpg

# ディレクトリを GITの kesara/deepdreamerに変更する
cd
cd deepdreamer

# flowers.jpg画像をダウンロードする
wget https://github.com/google/deepdream/raw/master/flowers.jpg

# flowers.jpg画像を元に DeepDream（100世代）する
python3 deepdreamer.py flowers.jpg

# flowers.jpg画像を元に DeepDreamで GIFアニメを生成する
python3 deepdreamer.py --gif true flowers.jpg
# Error: only integer scalar arrays can be converted to a scalar index

# ImageMagick
sudo apt-get -y install imagemagick

pi@raspberrypi:~/deepdreamer $ python3 deepdreamer.py flowers.jpg
WARNING: Logging before InitGoogleLogging() is written to STDERR
W0807 13:06:42.396404  2675 _caffe.cpp:135] DEPRECATION WARNING - deprecated use of Python interface
W0807 13:06:42.396530  2675 _caffe.cpp:136] Use this instead (with the named "weights" parameter):
W0807 13:06:42.396548  2675 _caffe.cpp:138] Net('deploy.prototxt', 1, weights='bvlc_googlenet.caffemodel')
I0807 13:06:42.405501  2675 net.cpp:53] Initializing net from parameters:
name: "GoogleNet"
force_backward: true
state {

...

  convolution_param {
    num_output: 32
    kernel_size: 1
    weight_filler {
      type: "xavier"
      std: 0.2
    }
    bias_filler {
      type: "c
I0807 13:06:42.438524  2675 layer_factory.hpp:77] Creating layer data
I0807 13:06:42.438645  2675 net.cpp:86] Creating Layer data
I0807 13:06:42.438694  2675 net.cpp:382] data -> data
I0807 13:06:42.438804  2675 net.cpp:124] Setting up data
I0807 13:06:42.438846  2675 net.cpp:131] Top shape: 10 3 224 224 (1505280)
I0807 13:06:42.438896  2675 net.cpp:139] Memory required for data: 6021120
I0807 13:06:42.438936  2675 layer_factory.hpp:77] Creating layer conv1/7x7_s2
I0807 13:06:42.439004  2675 net.cpp:86] Creating Layer conv1/7x7_s2
I0807 13:06:42.439043  2675 net.cpp:408] conv1/7x7_s2 <- data
I0807 13:06:42.439093  2675 net.cpp:382] conv1/7x7_s2 -> conv1/7x7_s2

...

I0807 13:07:56.687074  2682 net.cpp:746] Ignoring source layer loss3/loss3
Dreaming...
/usr/lib/python3/dist-packages/scipy/ndimage/interpolation.py:568: UserWarning: From scipy 0.13.0, the output shape of zoom() is calculated with round() instead of int() - for these inputs the size of the returned array has changed.
  "the returned array has changed.", UserWarning)

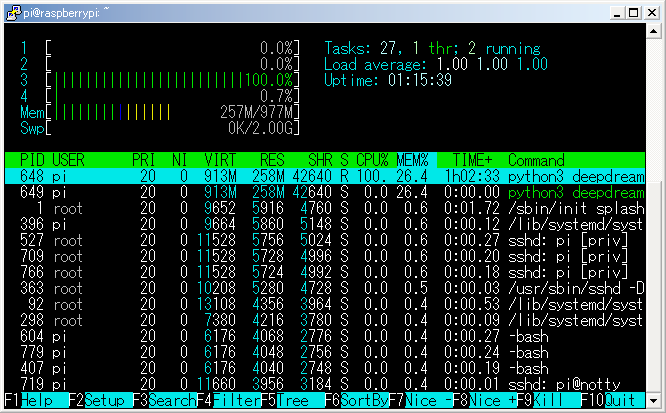

Raspberry Piでメモリを馬鹿食いするアプリ用に不要なサービスを停止してフリーメモリを増やす方法

pi@raspberrypi:~ $ free -h
              total        used        free      shared  buff/cache   available
Mem:           976M        250M        531M        6.5M        194M        670M
Swap:          2.0G          0B        2.0G
