OLIMEX OKI-H5003(Oki ML67Q5003 ARM) OLIMEX OKI-H5003(Oki ML67Q5003 ARM)

(OKI-H5003 ASM Sample Program / ISFP Utility.)

Tags: [ワンチップCPU]


ARM

OKI

OLIMEX





Oki ML67Q5003 Links

Oki ML67Q5003 Single-chip 32-bit microcontrollers; Oki Semiconductor

OKI-ARM-mcus : OKI ARM microcontrollers YAHOO! Groups

Welcome to the ARM microcontroller Wiki! ARM Information[Wiki]

ARM Instruction Set Quick Reference Card

ARM Instruction Manual ARM7-TDMI-manual

ARM7TDMI Chapter6 Instruction Cycle Timings

RE-EJECT.GBADEV.ORG GNU-AS GAS ARM Reference & ARM/Thumb Instruction PDF.Very Good !

Assembly-programs by Linux Zaurus ARM ASSEMBLER(JAPANESE)


*OKI-H5003 Sample program

*File archive.
LED Blink & Cache : TEST_OKI.ZIP for OLIMEX OKI-H5003
<- Input down and




*OLIMEX OKI-H5003 Simple boot monitor
'ARMoni' Version 0.0


*Introduction
ARMoni is Boot monitor for OLIMEX OKI-H5003.
it is simple and is easily usable.
This monitor does not need JTAG-I/F.
Program transfer is possible via USB-I/F.
You can build development environment freely.
Protect life of built-in ROM.

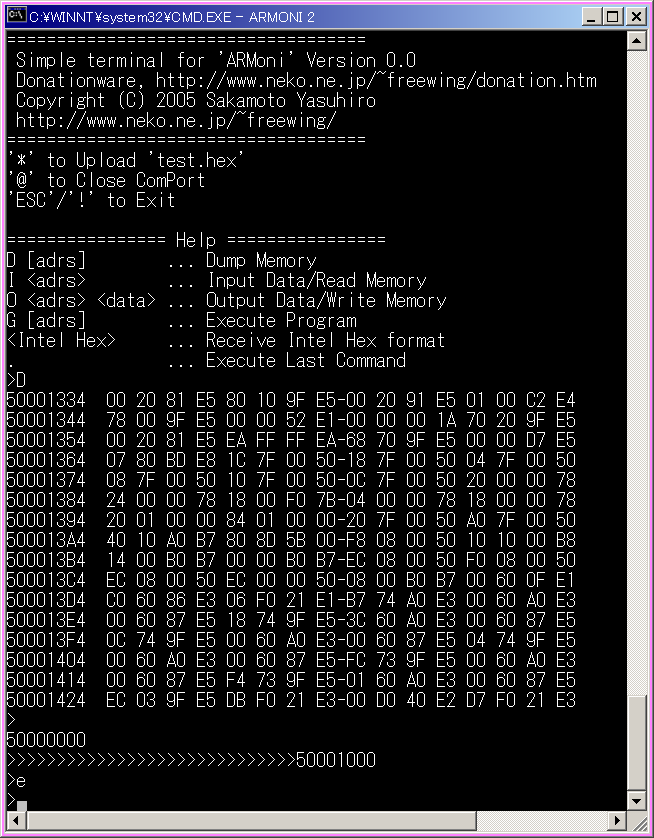

* Screen shot

*File archive.
'ARMoni' Monitor / Sample program : ARMoni.ZIP for OLIMEX OKI-H5003
<- Input down and



< table> (Donationware
)

* ARMoni manual(English) , ARMoni manual(Japanese)


*OKI-H5003 Memory Data Sheet

High Speed SRAM (4Mbits,512KBytes) : IDT IDT71V416L, SAMSUNG K6R4016V1D-TC10

Synchronous DRAM (128Mbits,16MBytes) : SAMSUNG K4S281632F-TC75

Flash ROM (64Mbits,8MBytes) : INTEL TE28F64C3BC80


*How to program OKI-H5003


Oki ML674002/3 and ML67Q5002/3 series support ISFP(In System Flash Programming).
The ISFP programs the internal flash of Oki's MCUs by interfacing with the built-in Boot-ROM of the MCU through its UART serial port.

Oki In System Flash Programming (ISFP) Utility
or
OKI-ARM-mcus : OKI ARM microcontrollers
YAHOO! Groups Files section


*Set dip switch forrowing picture.
(POS 2=OFF,POS 3=ON)


*Execute OKI in System Flash Programming (ISFP) Utility.

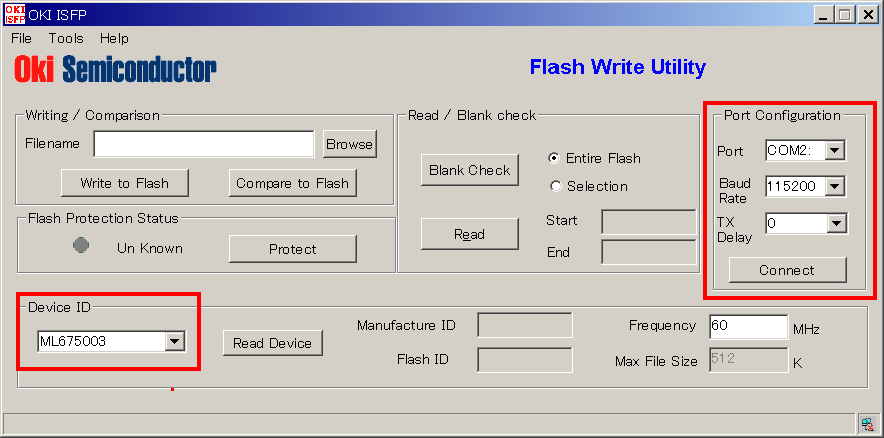

Select COM port and Push 'Connect'.
(Port=FT232BM,Baud Rate=115200,Device ID=ML67Q5003)

*Push OKI-H5003's RESET Button.
And Push 'OK'.


*Push 'OK'.

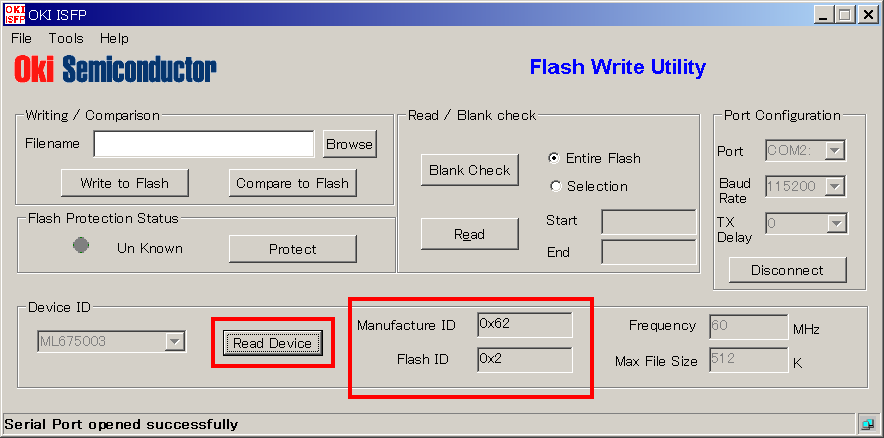

*Push 'Read Device'.

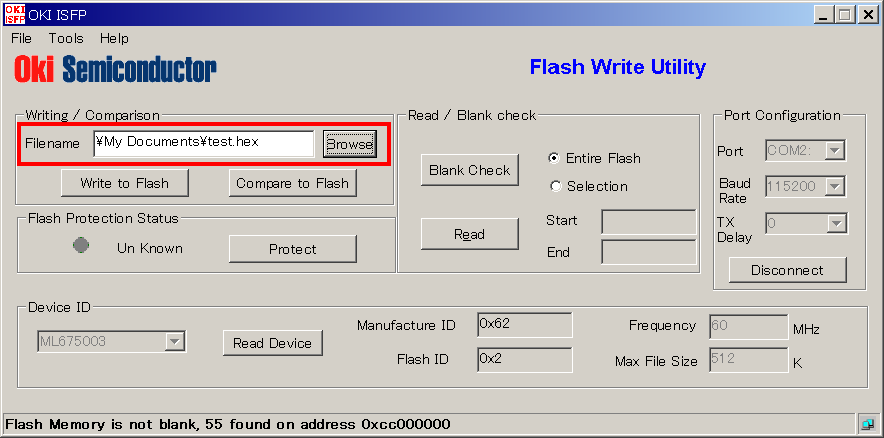

*Push 'Browse' and select program file(Intel HEX format,offset 0xCC000000).

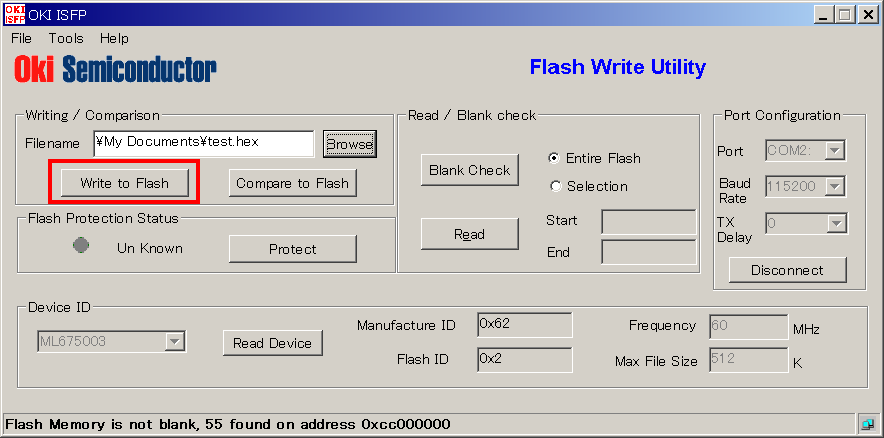

*Push 'Write to Flash'.

*Push 'Yes'.


*Push 'OK'.


*Program wrtie done.
Push 'OK'.

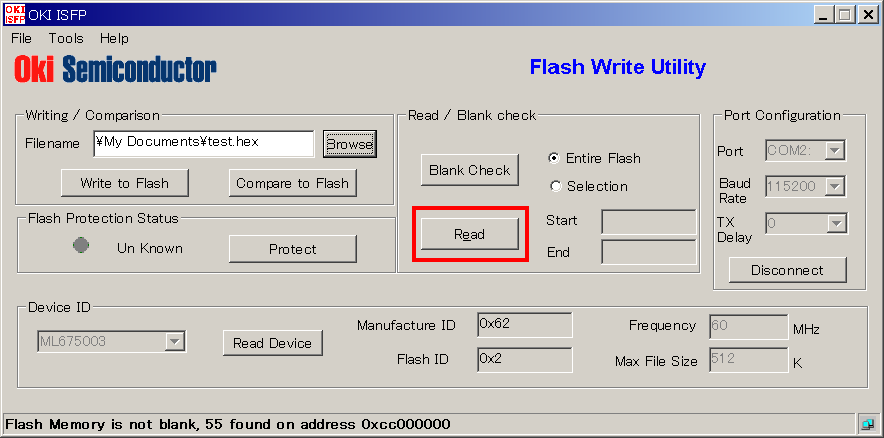

*Push 'Read' to browse Flash rom.

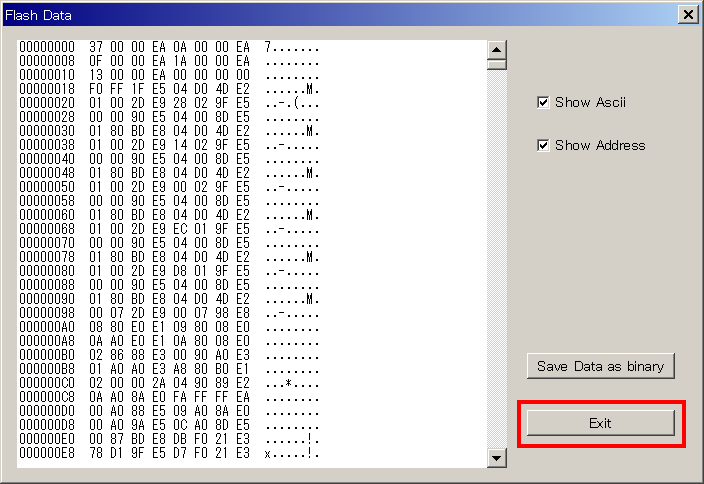

*Flash rom dump.
*Push 'Exit' to close dump window.


*How to run(normal operation) OKI-H5003

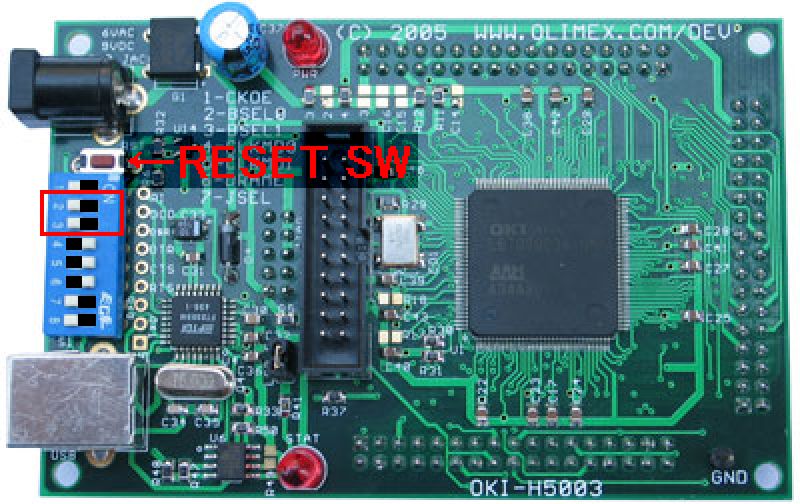

*Set dip switch forrowing picture.
(POS 2=OFF,POS 3=OFF)
*Push OKI-H5003's RESET Button.
